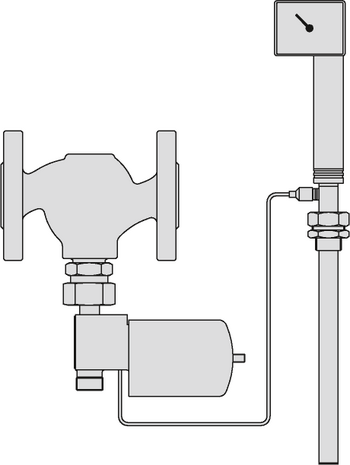

2111/2213 - DIN
Safety temperature monitor
USAGE
- Temperature control
MEDIUM
Water and other liquids
Heat transfer oil
VERSION
DIN
MEDIUM TEMPERATURE
-10
to 350 °C /
14
to
662 °F
VALVE SIZE
DN 15
to
DN 50
PRESSURE RATING
PN 16
to
PN 40
FUNCTION
- Safety temperature monitor (STM)
APPLICATION
- Valve closes when the temperature rises (heating)
TEMPERATURE LIMIT
-10 to 120 °C / 14 to 248 °F
Special features
- Safety temperature monitor
- Consisting of valve and safety thermostat
- Extended safety according to DIN EN 14597
Valve 2111
- Unbalanced globe valve
- Excess temperature safety device
Accessories
- - - -
Valve 2111
- Extension piece for temperatures above 220 °C
- Intermediate piece as seal between valve and thermostat
Options
- - - -
Valve 2111
- Valve free of non-ferrous metal
- Corrosion-resistant valve
Information
T 2010-1
Selection Guide for Temperature Regulators
[EN][DE]T 2043
Safety Temperature Monitors (STM) with
Type 2213 Safety Thermostat
[EN][DE]T 2111
Type 1 Temperature RegulatorFlanges[EN][DE]T 2010
Information Sheet:
Type 1 to Type 9 Temperature Regulators
[EN][DE]T 2040
Type 1/..., Type 4/..., Type 9/... Typetested Safety Devices
[EN][DE]
