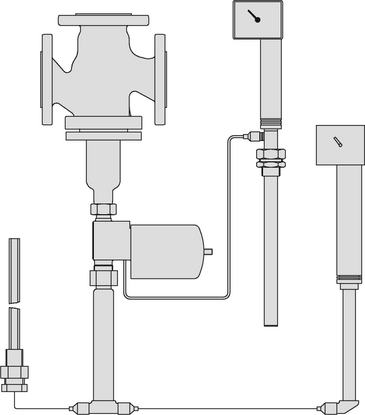

2119/2234/2213 - DIN
Temperature regulator and safety temperature monitor
USAGE
- Temperature control
MEDIUM
Water and other liquids
Air and non-flammable gases
Heat transfer oil
VERSION
DIN
MEDIUM TEMPERATURE
-10
to 350 °C /
14
to
662 °F
VALVE SIZE
DN 15
to
DN 150
PRESSURE RATING
PN 16
to
PN 40
FUNCTION
- TR + STM
APPLICATION
- Mixing/diverting
TEMPERATURE LIMIT
-10 to 120 °C / 14 to 248 °F
TEMPERATURE SET POINT
-10 to 250 °C / 14 to 482 °F
RESPONSE SPEED
- Fast
Special features
- Temperature regulator and safety temperature monitor
- Consisting of valve, safety thermostat, and control thermostat
- Extended safety according to DIN EN 14597
Valve 2119
- Unbalanced three-way valve
- Excess temperature safety device
Accessories
- - - -
Valve 2119
- Extension piece for temperatures above 220 °C
- Intermediate piece as seal between valve and thermostat
Options
- - - -
Valve 2119
- Corrosion-resistant valve
Information
T 2133
Type 9 Temperature RegulatorWith balanced three-way valve · Flanged connections[EN][DE]T 2043
Safety Temperature Monitors (STM) with
Type 2213 Safety Thermostat
[EN][DE]T 2010-1
Selection Guide for Temperature Regulators
[EN][DE]T 2010
Information Sheet:
Type 1 to Type 9 Temperature Regulators
[EN][DE]T 2040
Type 1/..., Type 4/..., Type 9/... Typetested Safety Devices
[EN][DE]
