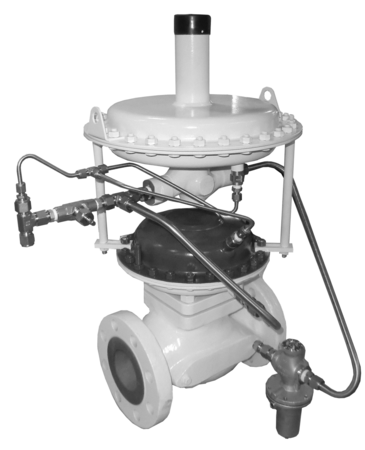

2404-1 - ANSI
Pressure reducing valve
USAGE
- Pressure control
MEDIUM
Gases
Air and non-flammable gases
VERSION
ANSI
MEDIUM TEMPERATURE
-20
to 90 °C /
-4
to
194 °F
VALVE SIZE
NPS 1
to
NPS 6
PRESSURE RATING
Class 125
to
Class 300
FUNCTION
- Pressure reducing valve
APPLICATION
- Valve closes when the downstream pressure rises
Special features
- Pressure reducing valve
- Consisting of main valve, pilot valve, input pressure regulator, and mounting kit
- Inert gas control in tank blanketing applications (e.g. when storing oxidation-sensitive, toxic, or explosive products)
- Meets strict emission requirements (TA Luft)
Accessories
- - - -
Options
- Version with FDA-compliant materials
- Pilot valve connection with seal and leakage line connection
Information
Support
DXF file from data sheet
- T 2538 [ZIP]
