3930

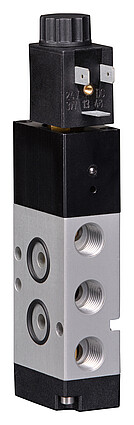

Solenoid valve
PRODUCT
Solenoid valve
USAGE
- On/off service
ATTACHMENT TO
- Rotary actuator, single acting
- Rotary actuator, double acting
EXPLOSION PROTECTION
- Without certification
COMMUNICATION
- Without
CONTROL LOOP
- Without
OPTIONAL SOLENOID VALVE
- Without
SWITCHING FUNCTION
- 3/2-way
- 5/2-way
VALVE DIAGNOSTICS
- Without
Special features
- Solenoid valve
- Attachment to rotary actuators according to VDI/VDE 3845
- Solenoid and piston valve with return spring
- Combination of different switching functions (3/2- or 5/2-way)
- Manual override
- 24 V DC or 230 V AC
- 0.85
Accessories
- Silencer
- Cable socket according to DIN EN 175301-803 made of polyamide
Options
- - - -
Information
AB 07
Vent Plugs
[EN][DE]AB 08
Filter Check ValveIntegrated into a screw-on body with G ¼ thread, degree of protection IP 56/66 or NEMA 4[EN][DE]AB 13
Solenoid Valve RFQ Form
[EN][DE]AB 11
Information Sheet
SAMSON's modular design conceptFunction blocks for valve accessories with NAMUR interface[EN][DE]
Support
DXF file from data sheet
- T 3930 [ZIP]
Certificates
