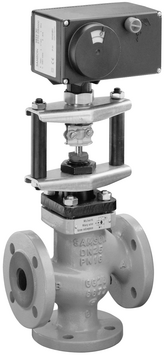

3323 - electric - DIN

3323 - electric - DIN

Globe valve

VALVE STYLE
Globe valve

USAGE

  • Mixing or diverting service
  • Low-pressure service
  • Throttling service

VERSION
DIN

MEDIUM TEMPERATURE
-10 to 300 °C / 14 to 572 °F

SUPPLY
Electric

VALVE SIZE
DN 15 to DN 100

PRESSURE RATING
PN 16 to PN 40

LINING
without

Special features

  • Consisting of three-way valve and actuator
  • Suitable for liquids, gases, and steam

Accessories

  • Type 2 N Strainer
  • Type 2 NI Strainer

Options

  • Insulating section

3323 - electric - DIN can be combinated with the following actuations:

Special features:

  • SAM DIGITAL READY
  • Linear actuator with 15 mm or 30 mm rated travel
  • 15 mm version optionally with fail-safe action (actuator stem retracts or extends)
  • Optionally three-step version or with digital positioner
  • Optionally with integrated yoke or ring nut including the necessary stem connecting parts
Three-step version:
  • Synchronous motor with maintenance-free planetary gear
Version with digital positioner:
  • Stepper motor with maintenance-free gearing
  • All function settings performed using a rotary pushbutton on the actuator
  • Configuration, parameterization, diagnostic function, and online connection for monitoring using the TROVIS-VIEW software

Information

  • AB 02

    Flanges
    Connecting dimensions according to DIN EN 1092-1 and DIN 2501-1
    [EN][DE]
  • AB 0100

    Servicing SAMSON Products
    Tightening Torques · Lubricants · Tools
    Electric and Pneumatic Control Valves
    Type 3241, Type 3244, Type 3246, Type 3248, Type 3249, Type 3510, Type 3321, Type 3321CT, Type 3323, Type 3271, Type 3277, Type 3371, Type 3372, Type 3571, Type 3251, Type 3253, Type 3254, Type 3256, Type 3259, Type 3281, Type 3286, Type 3291, Type 3296, Type 3349, Type 3275, Type 3275A and Type 3310 (edition 2020)
    [EN][DE]
  • T 8000-6

    Information sheet
    Packings for Globe Valves
    Packing forms and their application ranges
    [EN][DE]
  • T 8113

    Type 3323 Three-way Valve with electropneumatic, pneumatic or electric actuator
    DIN version
    [EN][DE]

Support

  • EB 8113/8114

    Type 3323 Valve
    DIN and ANSI versions
    [EN][DE]

DXF file from data sheet
